• Air conditioning, single-zone manual
• Assist handle, front passenger
• Defogger, side windows
• Headliner, cloth, over driver and passenger
• Oil life monitor
• Theft-deterrent system, vehicle, PASS-Key III
• Warning tones, headlamp on and key-in-ignition

• Alternator, 145 amps
• Body, standard
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, ladder-type
• Rear wheel drive
• Steering, power
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs

• Brakes, 4-wheel antilock, 4-wheel disc

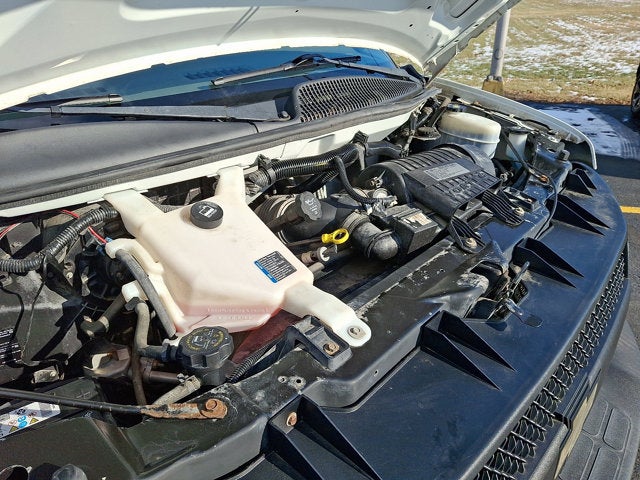

ENGINE, VORTEC 6.0L V8 SFI

• (324 hp [241.6 kW] @ 4700 rpm
• 373 lb-ft of torque [503.6 N-m] @ 4400 rpm)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY

• electronically controlled with overdrive and tow/haul mode and internal transmission oil cooler (STD)

REAR AXLE, 3.73 RATIO

• (Standard on *G33803 model and *G33903 model. With *G33503 model
• requires (C7A) 10
• 000 lbs. (4536 kg) GVWR or (C7N) 12
• 300 lbs. (5579 kg) GVWR or (YF2) Ambulance Package. Reference the Engine/Axle page for availability.)

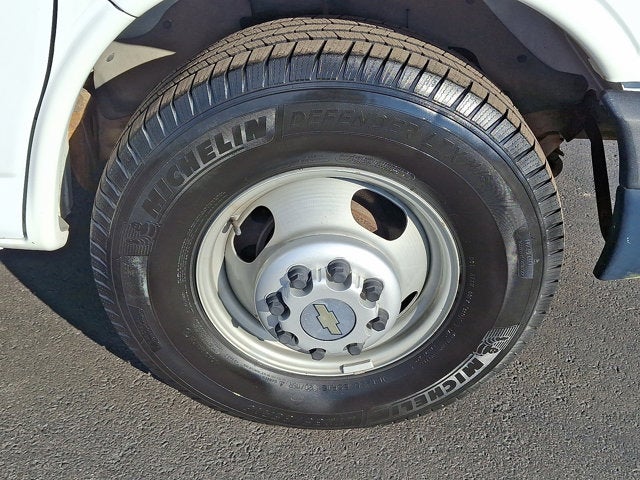

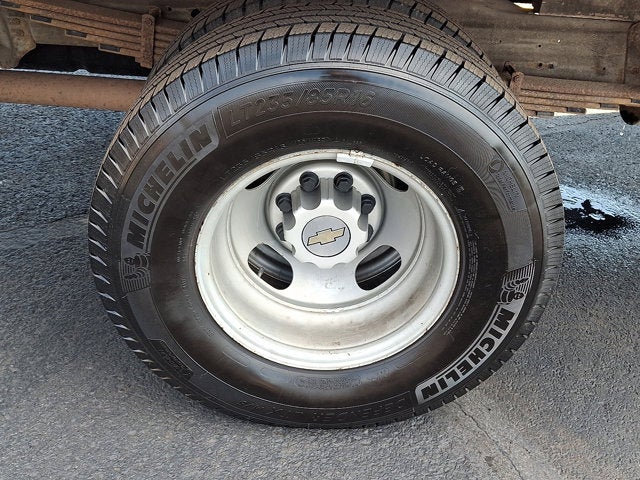

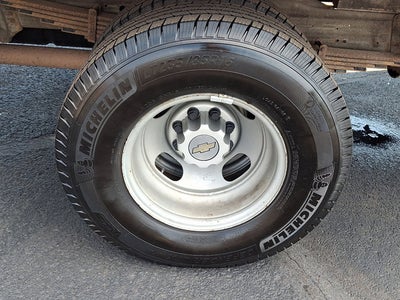

TIRES, REAR LT215/85R16E HIGHWAY, BLACKWALL

• (STD)

WHEELS, 6 - 16" X 6.5" (40.6 CM X 16.5 CM) 8-LUG PAINTED STEEL HEAVY DUTY

• (STD)

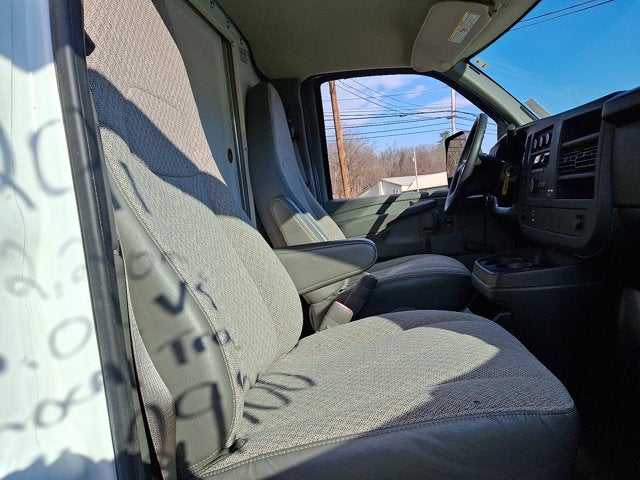

SEATS, FRONT BUCKET WITH VINYL TRIM AND OUTBOARD HEAD RESTRAINTS

• includes inboard armrests (STD)

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGHBACK BUCKET

• includes head restraints and vinyl or cloth trim (STD)

AUDIO SYSTEM, RADIO PROVISIONS ONLY.

• Includes alarm warning chimes
• radio wiring harness
• radio antenna and 2 front door speakers

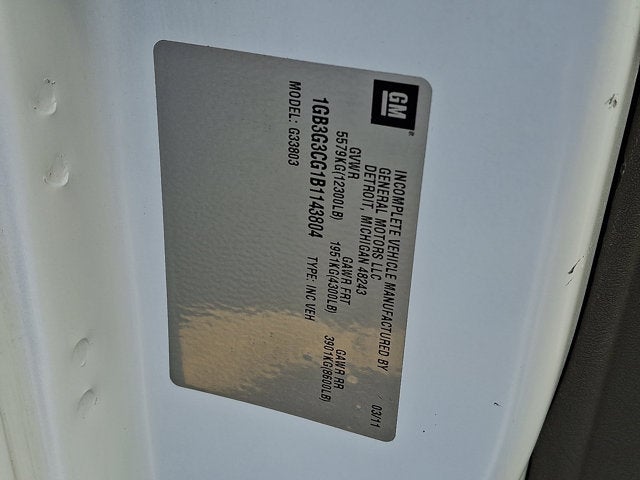

GVWR, 12,300 LBS. (5579 KG)

• (Includes (R05) dual rear wheel configuration on the *G33503 model. Not available with (R04) single rear wheel configuration.

BODY, STANDARD

• (STD)

1WT PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

FUEL TANK CAPACITY, APPROXIMATELY 57 GALLONS (215.7L)

• As part of the base design
• includes the auxiliary feed fuel fitting and in tank return line.

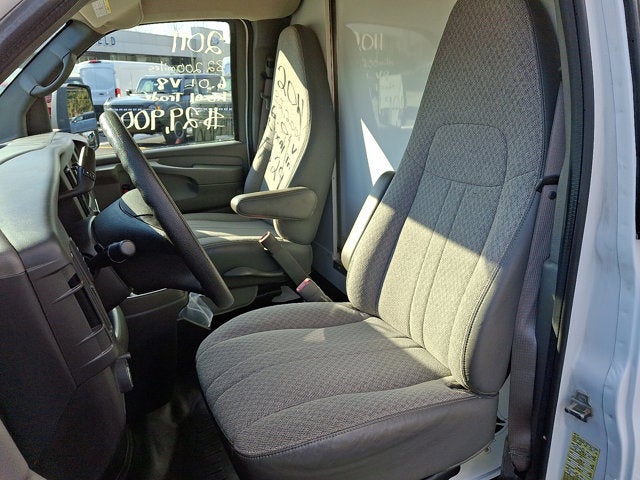

SEATS, FRONT BUCKET WITH CUSTOM CLOTH TRIM, HEAD RESTRAINTS AND INBOARD ARMRESTS

• Includes only driver high-back bucket seat with Custom Cloth trim when ordered with (ZX1) driver-only high-back bucket seating arrangement.)

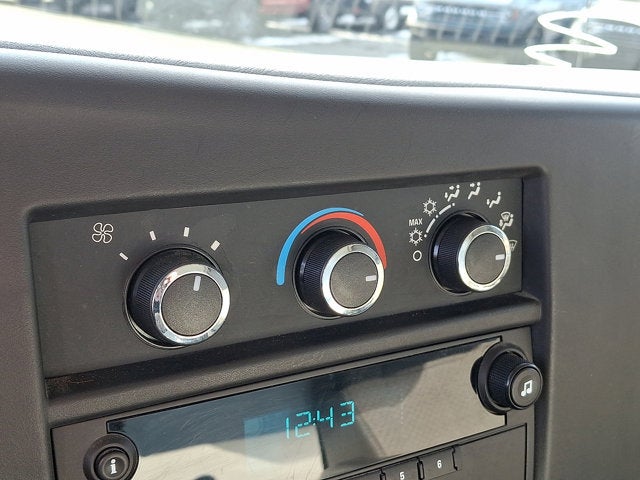

AIR CONDITIONING, SINGLE-ZONE MANUAL

• (STD)

• DIFFERENTIAL HEAVY-DUTY LOCKING REAR

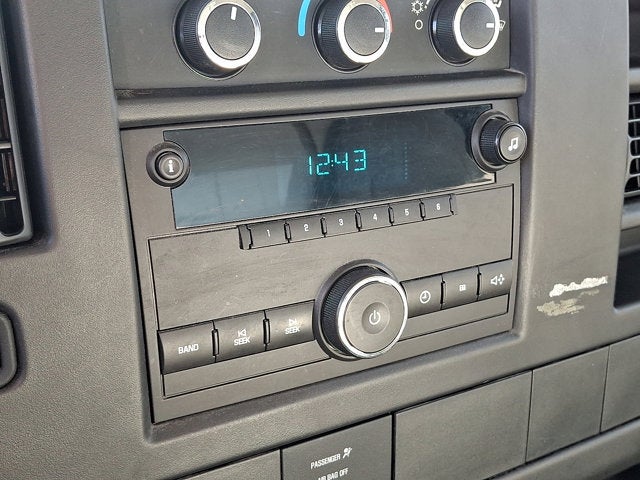

• AUDIO SYSTEM AM/FM STEREO WITH SEEK-AND-SCAN DIGITAL CLOCK AND 2 FRONT DOOR SPEAKERS
• ENGINE VORTEC 6.0L V8 SFI (324 hp [241.6 kW] @ 4700 rpm 373 lb-ft of torque [503.6 N-m] @ 4400 rpm)
• WHEELS 6 - 16" X 6.5" (40.6 CM X 16.5 CM) 8-LUG PAINTED STEEL HEAVY DUTY (STD)
• REAR AXLE 3.73 RATIO (Standard on *G33803 model and *G33903 model. With *G33503 model requires (C7A) 10 000 lbs. (4536 kg) GVWR or (C7N) 12 300 lbs. (5579 kg) GVWR or (YF2) Ambulance Package. Reference the Engine/Axle page for availability.)
• WHEEL CONFIGURATION REAR DUAL
• GVWR 12 300 LBS. (5579 KG) (Includes (R05) dual rear wheel configuration on the *G33503 model. Not available with (R04) single rear wheel configuration.
• BODY STANDARD (STD)
• MIRRORS OUTSIDE WIDE-STANCE SAIL PANEL MOUNTED (VELVAC).
• 1WT PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGHBACK BUCKET includes head restraints and vinyl or cloth trim (STD)
• PAINT SOLID
• FUEL TANK CAPACITY APPROXIMATELY 57 GALLONS (215.7L) As part of the base design includes the auxiliary feed fuel fitting and in tank return line.
• TIRES REAR LT215/85R16E HIGHWAY BLACKWALL (STD)
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY electronically controlled with overdrive and tow/haul mode and internal transmission oil cooler (STD)
• SEATS FRONT BUCKET WITH CUSTOM CLOTH TRIM HEAD RESTRAINTS AND INBOARD ARMRESTS Includes only driver high-back bucket seat with Custom Cloth trim when ordered with (ZX1) driver-only high-back bucket seating arrangement.)
• TIRES FRONT LT215/85R16E HIGHWAY BLACKWALL
• SUMMIT WHITE
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• MEDIUM PEWTER CUSTOM CLOTH SEAT TRIM
• Rear Wheel Drive
• Power Steering
• Dual Rear Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Dual Rear Wheels
• Intermittent Wipers
• Daytime Running Lights
• Bucket Seats
• Bucket Seats
• A/C
• Power Outlet
• Trip Computer
• Immobilizer
• Rear Defrost
• ABS
• 4-Wheel Disc Brakes
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch

• Brakes
• Brake ABS System: 4-wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 145
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 100.0
• Cab to End of Frame (in): 168.5
• Frame Width, Rear (in): 34.8
• Front Bumper to Back of Cab (in): 98.7
• Ground Clearance, Front (in): 7.6
• Ground Clearance, Rear (in): 7.0
• Ground to Top of Frame (in): 23.3
• Height, Overall (in): 82.9
• Length, Overall w/o rear bumper (in): 266.7
• Overhang, Front (in): 39.7
• Wheelbase (in): 159.0
• Width, Max w/o mirrors (in): 79.1
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 57
• Fuel Tank Location: Mid-frame
• Interior Dimensions
• Front Head Room (in): 40.2
• Front Hip Room (in): 65.5
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 68.8
• Passenger Capacity: 2
• Steering
• Steering Ratio (:1), On Center: 17.2
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 54.5
• Summary
• Body Code: ZW9
• Body Style: 159.0" WB

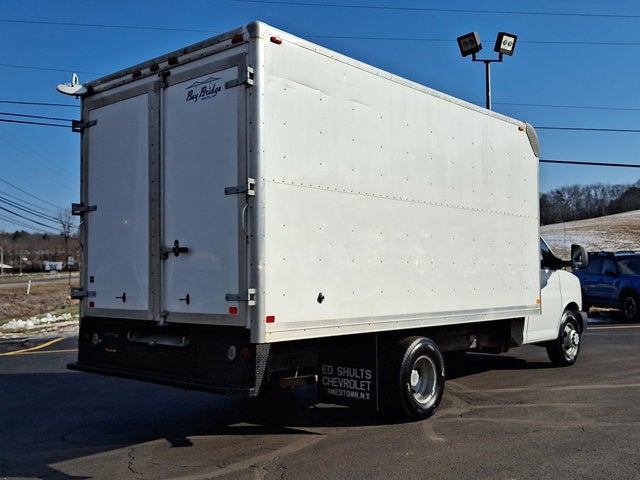

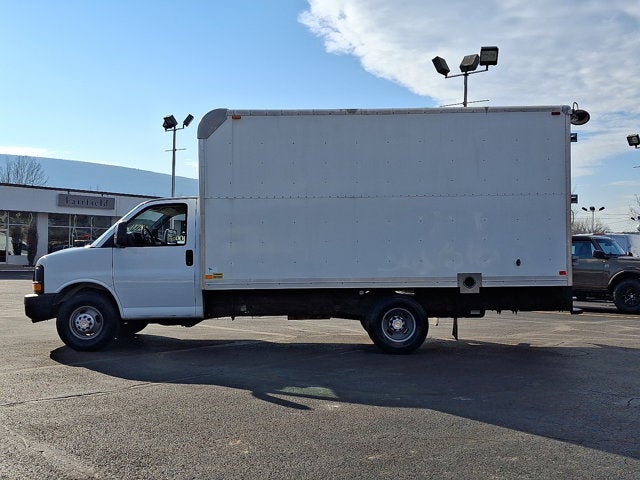

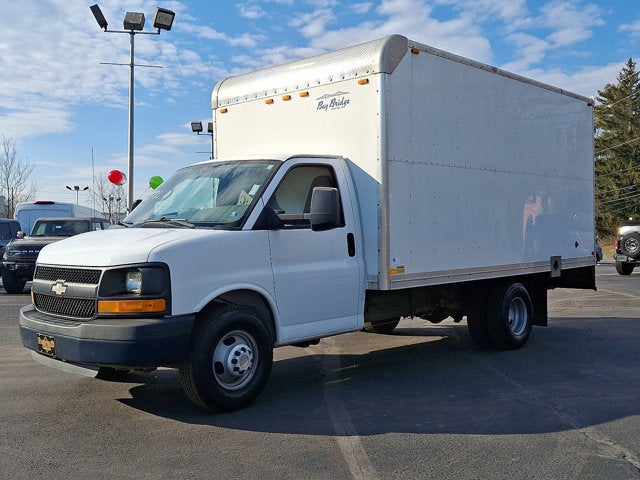

• Vehicle Name: Chevrolet Express Commercial Cutaway
• Suspension
• Axle Ratio (:1) - Rear: 3.73
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.38
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf
• Tires
• Front Tire Order Code: XEC
• Front Tire Size: LT215/85R16E
• Rear Tire Order Code: YEC
• Rear Tire Size: LT215/85R16E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Weight Information
• Curb Weight - Front (lbs): 3163
• Curb Weight - Rear (lbs): 1779
• Gross Combined Wt Rating (lbs): 16000
• Gross Vehicle Weight Rating Cap (lbs): 12300
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 16 x 6.5
